BEHOTECH DESIGN

MOLDFLOW PLASTICS ADVISERS REPORT

ANALYSIS 1
Prepared By: B.VAN HOOF
Prepared for: J.C. de Groot

DYM-Topinsert

Date: 07-03-2001


Introduction



Summary

Release Level: 5.00
Part Name: ECKL-41 BODY
Material Supplier: BASF (Germany) [ BASFWIS ]
Material Grade: Polystyrol 427 D [ BA2704 ]
Max Injection Pressure: 500.00 MPa
Mold Temperature: 45.00 deg.C
Melt Temperature: 235.00 deg.C
Model Suitability: Part model was highly suitable for analysis.

Moldability: Your part will be extremely difficult to fill and part quality may be unacceptable.

View the Confidence of Fill plot and use the Dynamic Adviser to get help on how to improve the filling of the part.
Confidence: Low
Injection Time: 1.12 sec
Injection Pressure: 96.53 MPa
Weld Lines: Yes
Air Traps: Yes
Shot Volume : 19.97 cu.cm
Warnings: Injection nodes have been placed in thin regions.
This can lead to problems relating to sink marks and warpage.

Location (207.2,141.7,8.2) on part 1 is only 0.3 mm thick.

With the part 1 thickness ranging from 0.2 mm to 3.0 mm
and the nominal thickness being 1.5 mm

Cooling Quality: Your part will have large problems cooling and may cause problems with ejection.
Temperature Range: -8.70 deg.C to 11.22 deg.C
Freeze Time Range: -2.39 sec to 6.97 sec

Sinkability: 9 % of your model was found to be prone to sink marks.

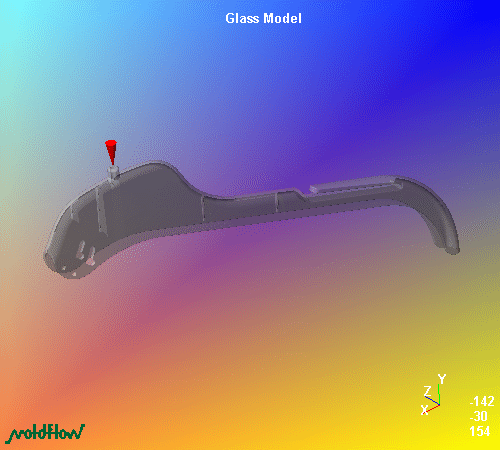

Glass Model

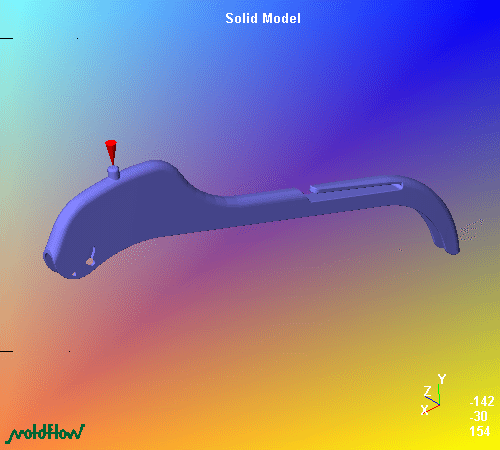

Solid Model



Plastic Flow





Animation - Plastic Flow


Fill Time





Animation - Fill Time

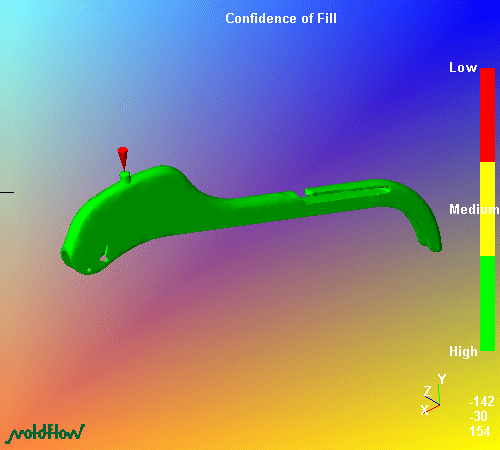

Confidence of Fill

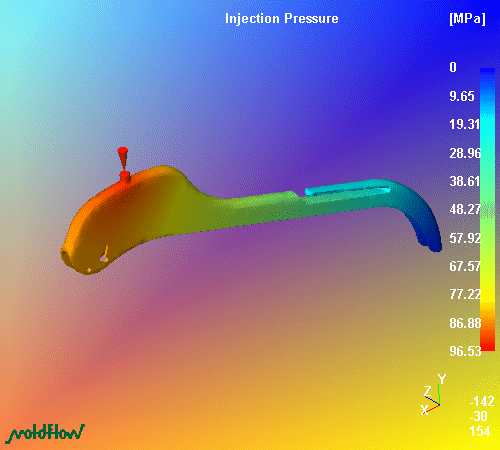

Injection Pressure

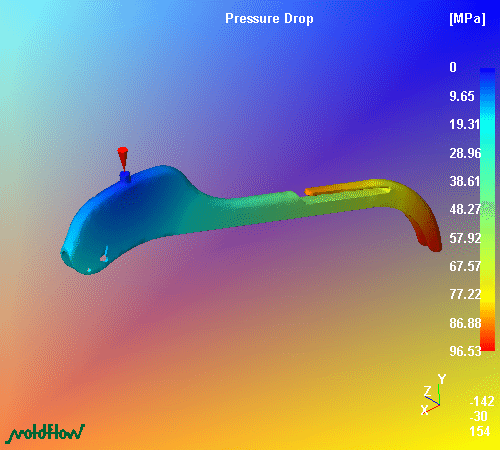

Pressure Drop

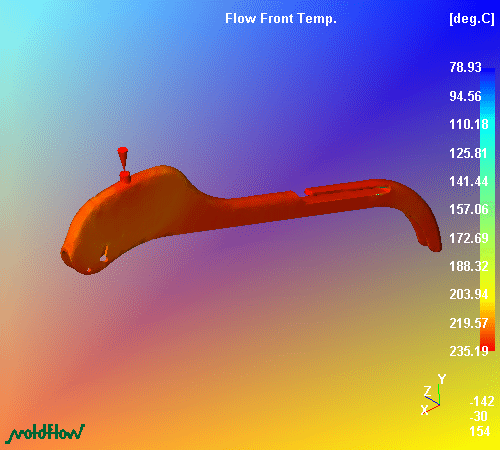

Flow Front Temp.

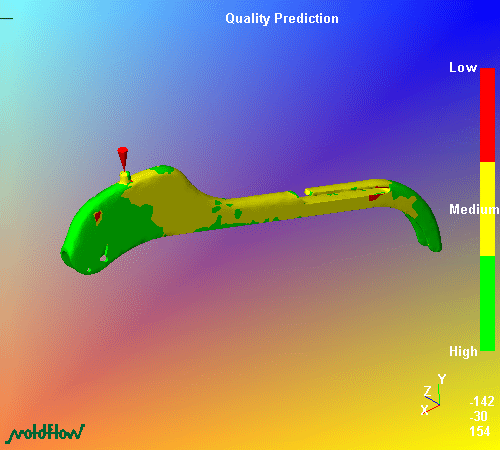

Quality Prediction

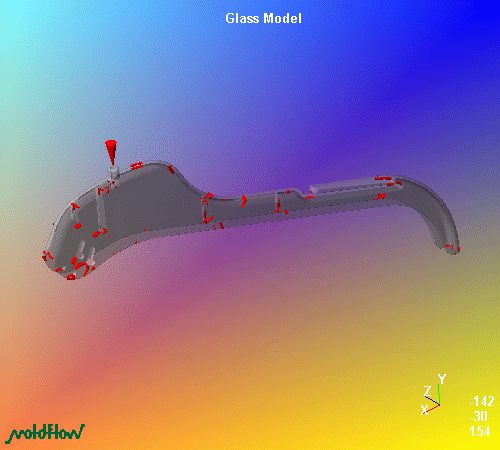

Weld Lines



Air Traps

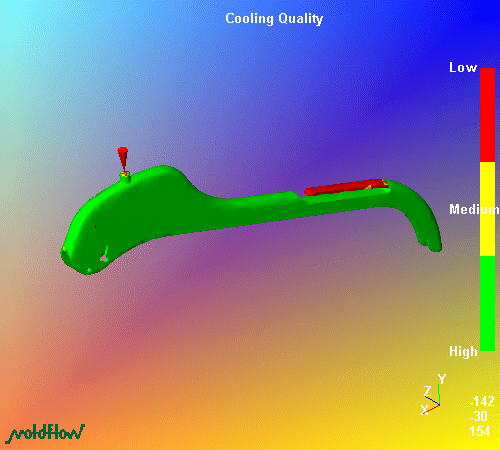

Cooling Quality

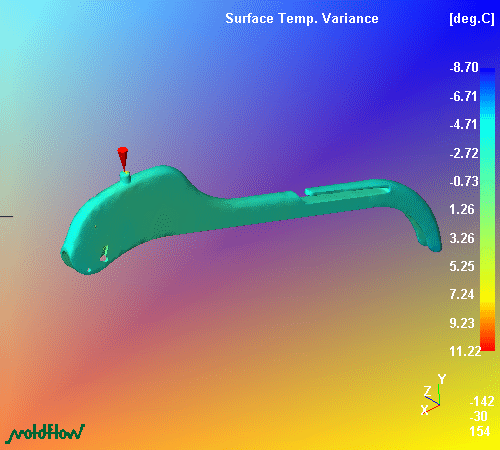

Surface Temp. Variance

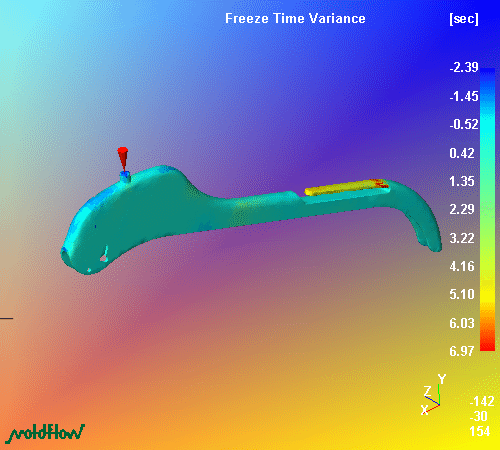

Freeze Time Variance



Sink Marks Estimate



Conclusion
